NEW DRIVER TECHNOLOGY

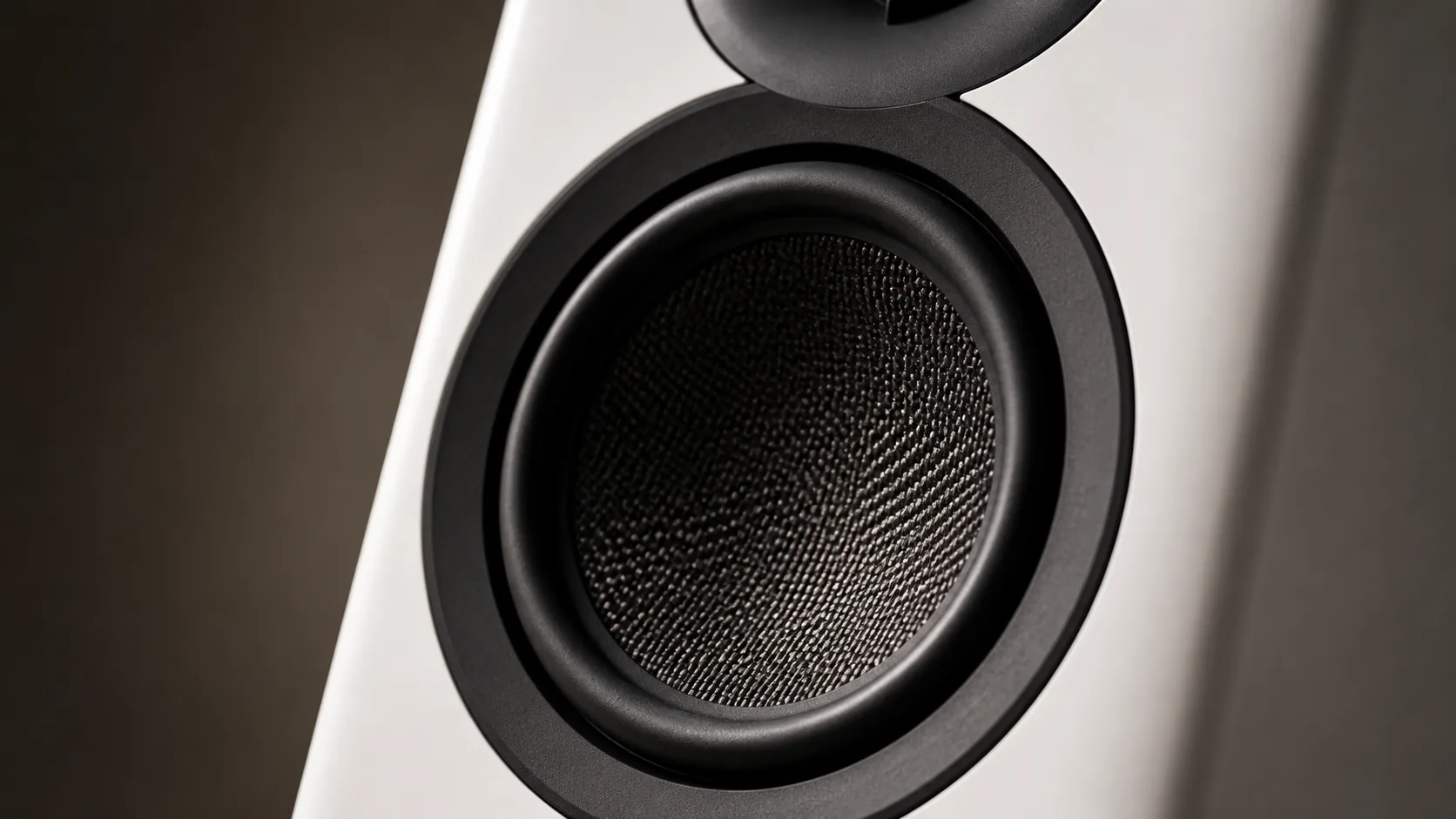

Dual Aramid Fiber Mid/Bass Drivers
The DCR53 uses two newly developed aramid fiber mid/bass drivers with a refined single-cone construction.
Their rigid, unified diaphragms help control unwanted resonances and improve driver integration, delivering clear vocals, controlled bass, and confident dynamics from the center channel.
HIGH-FREQUENCY PERFORMANCE

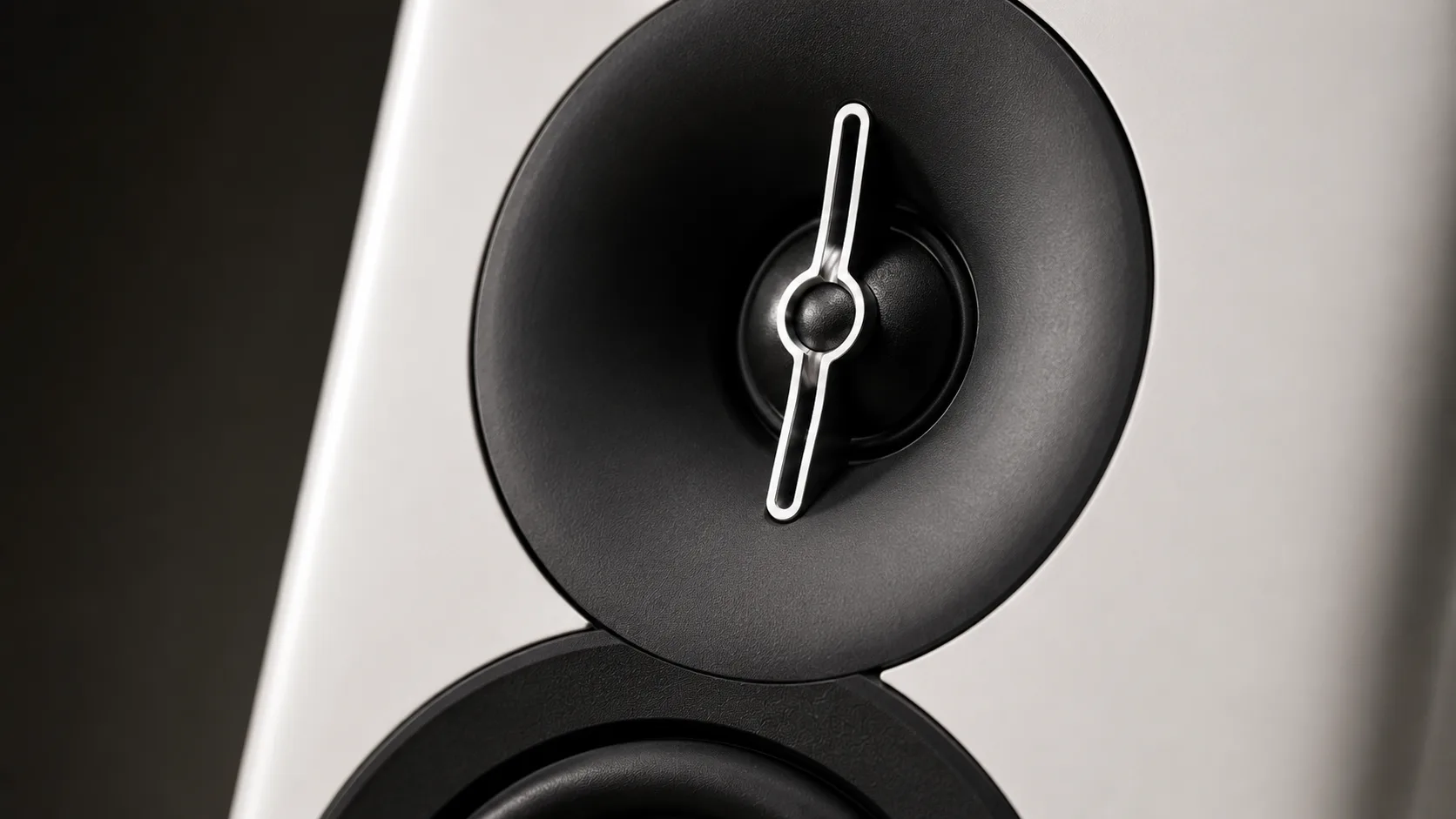

Aluminum Dome Tweeter with Phase Plug
The DCR53 uses an aluminum dome tweeter with an integrated phase plug and custom waveguide, engineered for clear, detailed high frequencies and low distortion.
Controlled wide dispersion helps dialogue and effects remain focused and tonally consistent throughout the seating area.
PREMIUM CRAFTSMANSHIP
Refined from Every Angle

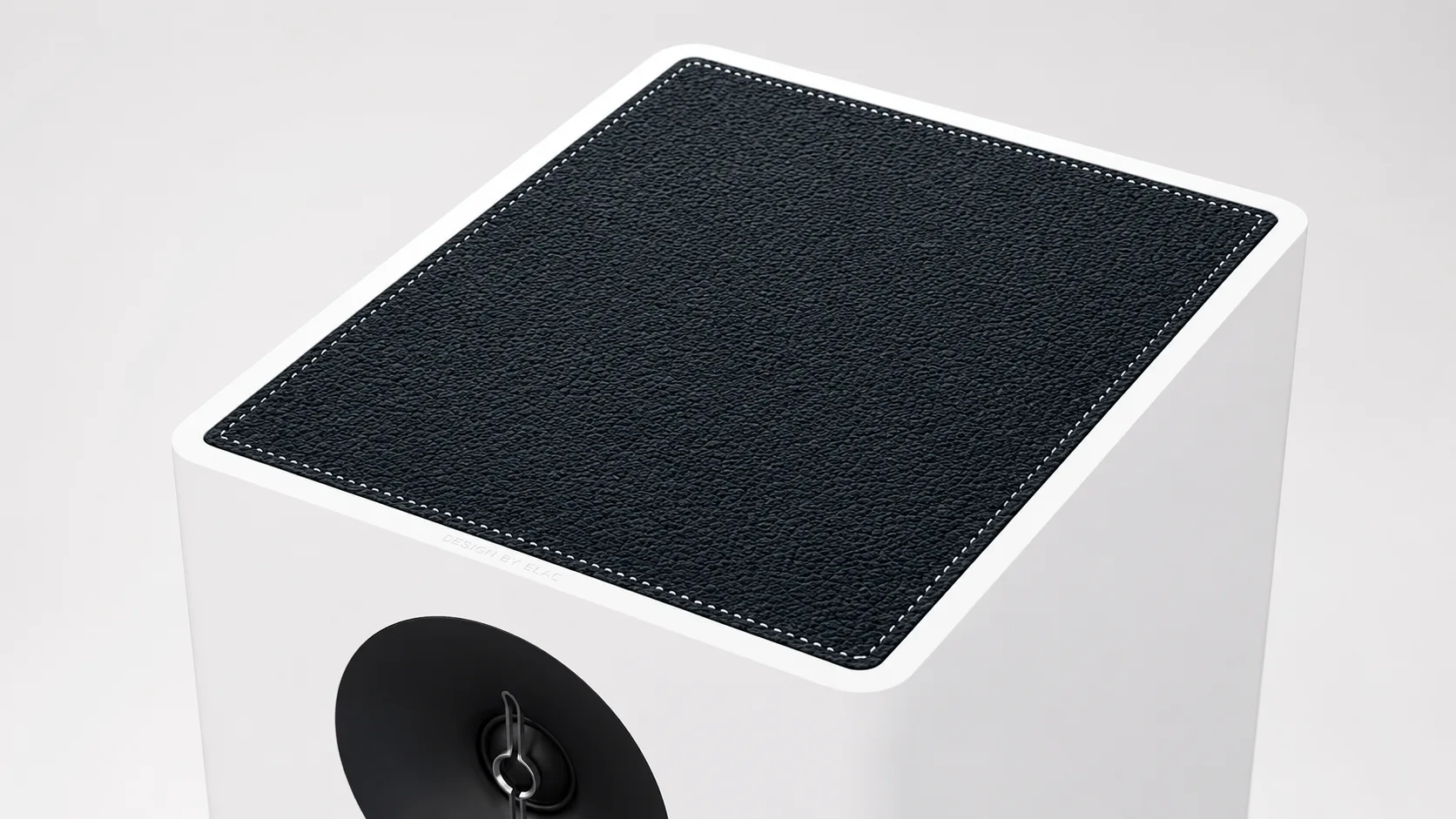

A stitched synthetic leather top panel gives the DCR53 a distinctive furniture-inspired finish, complementing its low-profile center-channel proportions.
Precisely integrated into the rounded enclosure, the contrasting material brings warmth, texture, and a level of craftsmanship rarely found in this class.
PREMIUM CABINET DESIGN
Flexible Placement. Focused Performance.
The DCR53 uses a sealed enclosure that supports placement close to a rear wall or inside cabinetry without relying on rear-port clearance.
Internal bracing helps control cabinet resonance, preserving dialogue clarity and dynamic impact while premium finishes allow the speaker to integrate naturally into a living space.
| Speaker Type | 2-Way Sealed |
|---|---|
| Frequency Range (-3dB) | 75 Hz - 34 kHz |
| Frequency Range (-6dB) | 58 Hz - 38 kHz |
| Frequency Range (-10dB) | 45 Hz - 40 kHz |
| Sensitivity (2.83v/m) | 87.5 dB |
| Nominal Impedance | 6 Ω |
| Minimum Impedance | 4.5 Ω at 220 Hz |
| Crossover Frequency | 2550 Hz |
| Recommended Amplifier Power | 30 - 120 W |
| Nominal / Peak Power Handling | 60 / 100 W |
| H x W x D (mm) | 202 x 482 x 242 |
