Adaptive Acoustic Architecture

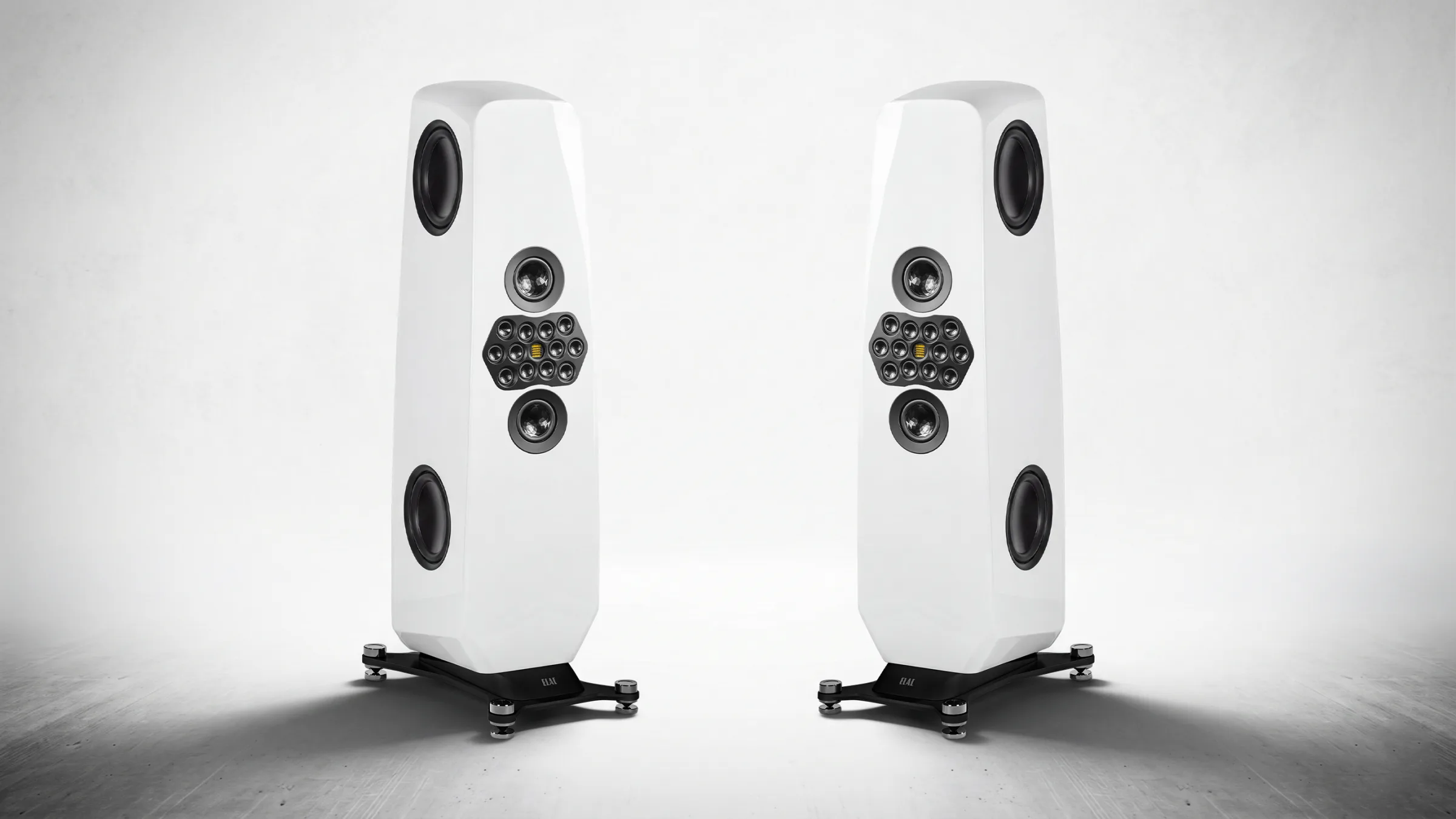

Combining flagship VXe12 Variable Directivity Technology, four powerful 250 mm woofers, and the legendary JET tweeter, the Concentro L 809 delivers extraordinary realism, scale, and room integration unlike any conventional loudspeaker.
THE FLAGSHIP
Built for Scale.
Four powerful 250 mm woofers and ELAC's flagship VXe12 Variable Directivity Technology deliver extraordinary scale, precision, and room integration.
VXe 12 TECHNOLOGY
Variable Directivity.

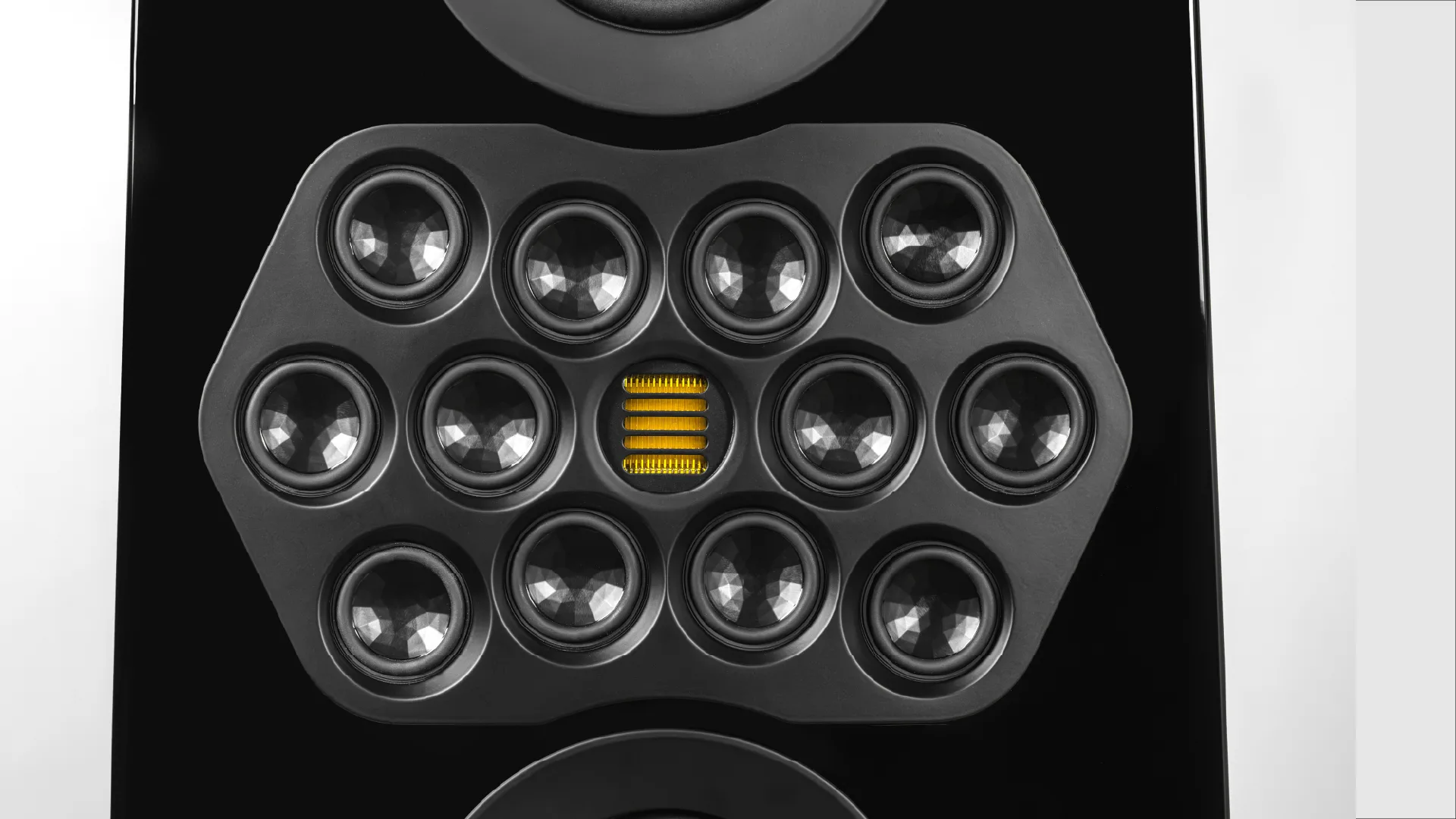

Twelve precisely controlled midrange elements arranged around ELAC's legendary JET tweeter form a variable array capable of adapting sound radiation characteristics to the room, listening distance, and personal preference.
VXe 12 CONTROL
Tailor the Soundstage.

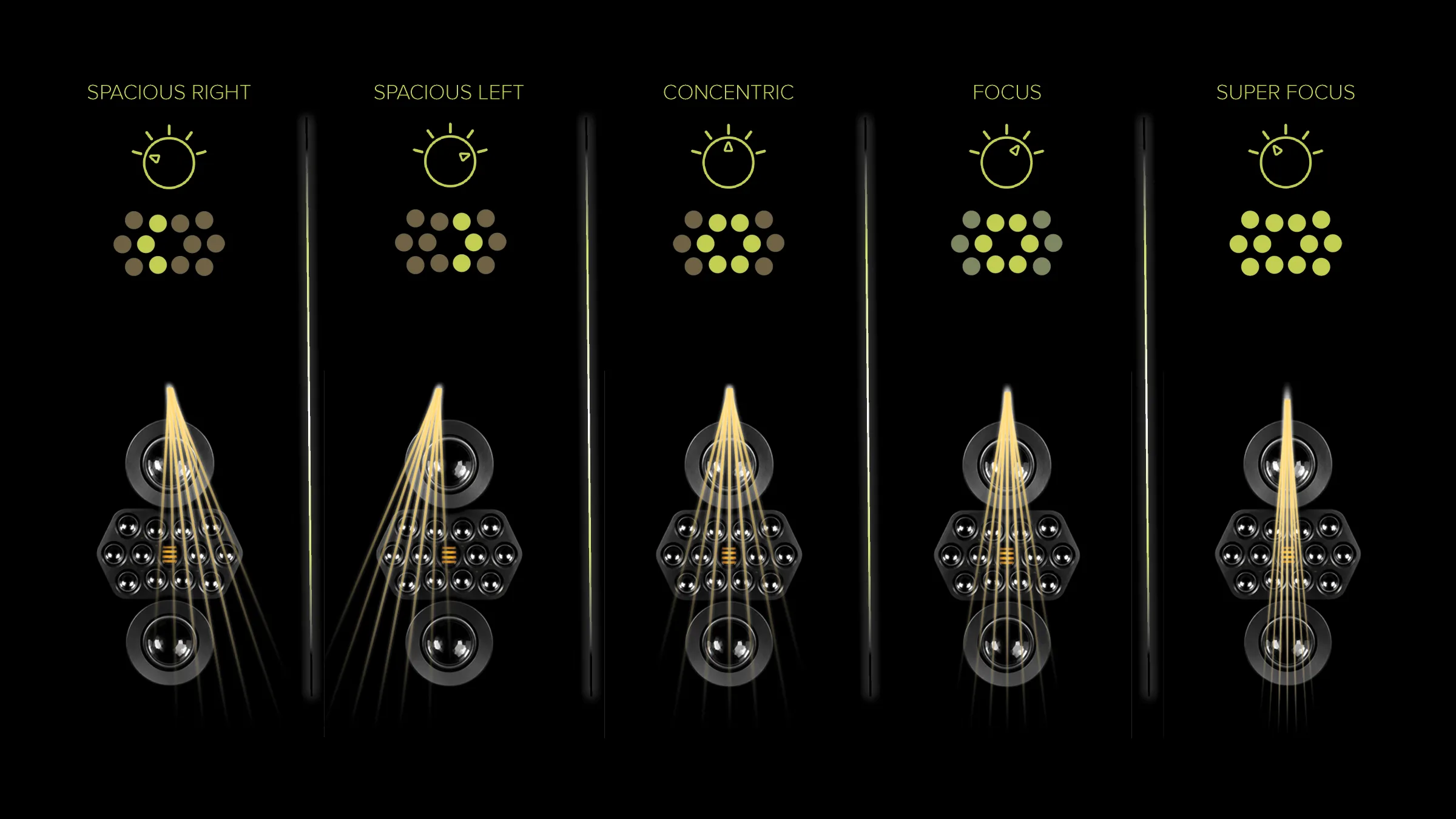

Five selectable directivity modes precisely control midrange sound energy distribution, allowing the Concentro L 809 to optimize imaging, focus, spaciousness, and room integration for different listening environments.
Kristallmembran-Treiber
Entwickelt für niedrige Verzerrungen
JET 6 Hochtöner
Blitzschnelle Impulsantwort und großer Dynamikumfang
| Design | 4-way, bass reflex |
|---|---|
| VXe Array | VXe12 |
| Woofers | 4 x 250mm, AS cone |
| Low-Midrange | 2 x 115 mm, AS-XR cone |
| High-Midrange | 12 x 40mm, A-XR cone |
| Tweeter | JET 6c |
| Crossover Frequency | 150 | 650 | 2750 Hz |
| Nominal Power Handling | 350 W |
| Peak Power Handling | 600 W |
| Minimal Impedance | 3.0Ω at 380 Hz |
| Frequency Range (EC 268-5) | 22 - 50000 Hz |
| Sensitivity | 88.5 dB / 2.83 V/m |
| Nominal Impedance | 4.0Ω |
| Recommended amplifier power | 100 - 600 W/Channel |
| Finishes | Black High Gloss, White High Gloss; Deco Rings in Black or Gray |
| Accessories | Bi-Wiring-Set, Polishing Cloth, Transport Straps |
| Dimensions (H × W × D) | TBC × TBC × TBC mm |
