Concentro 2.0 Floorstanding Speaker
The Concentro 2.0 cannot be mistaken for any other speaker, featuring a complex base machined from a single block of aluminum and weighing more than 55 pounds.
The aluminium sandwich woofers in a push-push/pull-pull arrangement are characterized by high internal damping (cardboard cone) and high torsional rigidity (aluminium dome) and deliver an enormous but controlled bass down to the deepest subsonic range. Oval side panels made of solid wood, laminated with carbon fiber or leather, frame two side-firing 250 mm woofers on each side of the cabinet.
A Masterpiece
ELACs Flagship Loudspeaker Design
The Concentro 2.0 is designed for top-tier performance, minimizing standing waves and resonances through its solid construction and thick MDF cabinet walls. Its carefully engineered design eliminates parallel surfaces that could foster unwanted vibrations. Additionally, the mid-tweeter, bass-midrange, and woofer are housed in separate chambers, ensuring acoustic decoupling and enhancing the cabinets overall stability.
VX-JET (Variable X-JET)
Tuned to your space
The acclaimed coaxial chassis, consisting of a midrange ring radiator and a JET tweeter arranged coaxially and coplanar with it, is a central component of the Concentros impressive sound. The special feature of this chassis is its adaptability, hence the name VX-JET (Variable X-JET). As no two rooms are the same and the same speaker sounds different in different rooms, the adjustment mechanism on the rear of the Concentro allows the sound dispersion plane to be continuously adjusted 8 mm in front of and 8 mm behind the neutral position. This allows the sound dispersion angle to be adapted to any spatial situation.

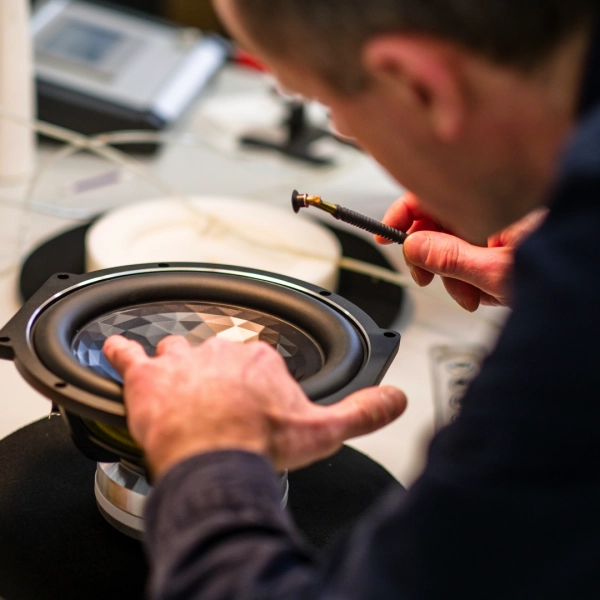

Crystal Membrane Driver
Engineered for Low Distortion
Based on ELAC’s Aluminum-Sandwich AS Technology. Resembling the surface of a large crystal, the aluminum-foil stamping stiffens the aluminum dome, diminishing resonances and minimizing coloration, while improving power handling and dynamics. The voice coil design of the drivers results in an expanded frequency range, and driver surround allows for longer cone excursions for truly prodigious volume and lowest distortion, a unique engineering achievement for a driver of its size.
JET 6 Tweeter
Lightning-Fast Response and Wide Dynamic Range
Delivering true high-definition sound, ELAC’s JET 6 tweeter enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom, and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise for its transparent and effortless sound image.
| Height | 1680 mm with spikes |
|---|---|
| Width | 460 mm with base |
| Depth | 610 mm with base |
| Weight | 152 kg |
| Type | 4 Way, bass reflex |
| Woofer | 4 × 250 mm @ AS cone |
| Low-Midrange | 1 x 220 mm @ AS XR cone |
| High-Midrange | 1 x 70 / 140 mm ®, AS XR ring radiator |
| Tweeter | JET 6 |
| Crossover frequency | 120 | 360 | 2700 Hz |
| Nominal power handling | 400 W |
| Minimal impedance | 3,0 Ω at 620 Hz |
| Peak power handling | 600 W |
| Frequency range (EC 268-5) | 18 - 50000 Hz |
| Sensitivity | 90 dB/2,83 V/m |
| Suitable for amplifiers from ... to | 4-8Ω |
| Nominal impedance | 4Ω |
| Recommended amplifier power | 80 - 600 W/channel |
| Finishes | Black High Gloss, White High Gloss |
| Accessories included in delivery | Bi-wiring set, gloves, tool set, trolley |
